HT-10CZ 1000kg Crawler Mini Excavator
  • HT-10CZ 1000kg Crawler Mini Excavator
  • HT-10CZ 1000kg Crawler Mini Excavator
  • HT-10CZ 1000kg Crawler Mini Excavator
  • HT-10CZ 1000kg Crawler Mini Excavator
  • HT-10CZ 1000kg Crawler Mini Excavator
  • HT-10CZ 1000kg Crawler Mini Excavator
HT-10CZ 1000kg Crawler Mini Excavator

HT-10CZ 1000kg Crawler Mini Excavator

Plaats van herkomst China
Merknaam Hightop
Certificering CE，EPA，ISO，TUV
Modelnummer HT-10CZ
Productdetails
Model:
HT10CZ
Gewicht:
1000 kg
Het graven emmercapaciteit:
0.025cbm/120kg
Motor:
KOOP (192F)
Markeren:

360 Degree Rotation Mini Excavator

,

1000kg Compact Excavator

,

Hydraulic System Crawler Mini Excavator

Betaling & het Verschepen Termijnen
Prijs
CE，EPA，ISO，TUV
Verpakking Details
Houten kist
Levertijd
5-14 werkdagen
Betalingscondities
L/C, T/T, D/P, D/A, Western Union
Levering vermogen
100 set per maand
Productomschrijving

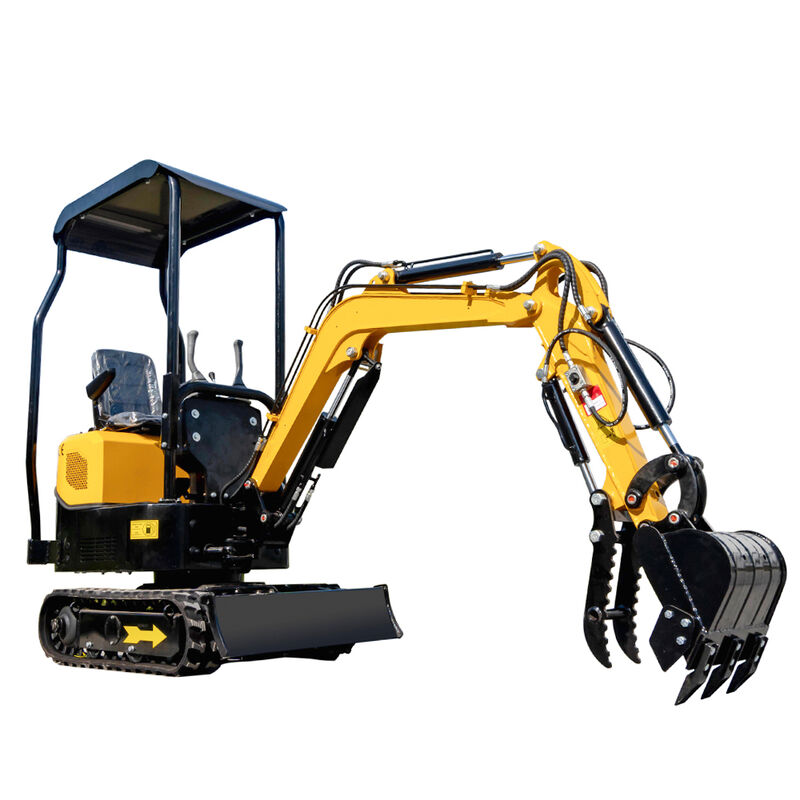

HT-10CZ Mini Excavator
The HT10CZ hydraulic crawler mini excavator features a BRIGGS & STRATTON engine, delivering superior power with energy efficiency. Available with optional boom deflection, telescopic track, and closed cab configurations. Choose from multiple color options including yellow, red, blue, white, or black, with full customization support. Certified with EPA, Euro 5, CE, and ISO standards.
Key Features
  • Accessible rear cover design for easy maintenance and refueling
  • 360-degree zero-tail swing capability for enhanced maneuverability
  • Bailiton engine compliant with U.S. EPA environmental requirements
  • Versatile bucket system compatible with multiple attachments including sieve hopper, narrow bucket with teeth, tilting bucket, flat bucket, rake, hydraulic thumb clamps, looseners, and crushing hammer
  • Red flexible coupling for effective shock absorption
  • High-precision filtration system with 1μm precision and 99.9% filtration rate
  • Integrated oil pressure alarm system for machine protection
  • Advanced heat dissipation system with sealed exhaust fan
  • Travel motor pressure relief system for extended component life
  • Stabilizing and balancing system with thickened four-legged roof structure
Technical Specifications
Model HT10CZ
Weight 1000kg
Digging Bucket Capacity 0.025cbm/120kg
Bucket Width 380mm
Engine KOOP(192F)
Optional Engine BRIGGS & STRATTON YANMAR
Bore Stroke Single cylinder, fan cool
Rated Power 7kw/3000r/min
Main Pump G5-6
Displacement 6.8ml/r
Swing Motor SANYANG (BMRS-250)
Traveling Motor SANYANG (BMT-245)
Travel Speed 1.5km/h
Main Dimensions
Overall Dimension (L*W*H) 2775 * 930 * 2219 mm
Wheelbase 910 mm
Total Length of Track 1230 mm
Platform Ground Clearance 380 mm
Platform Back Turning Radius 784 mm
Chassis Width 896 mm
Track Width 180 mm
Chassis Ground Clearance 132 mm
Track Height 320 mm
Performance Specifications
Max. Digging Depth 1750 mm
Max. Vertical Digging Depth 1375 mm
Max. Digging Height 2610 mm
Product Images
HT-10CZ 1000kg Crawler Mini Excavator 0 HT-10CZ 1000kg Crawler Mini Excavator 1 HT-10CZ 1000kg Crawler Mini Excavator 2

Markeringen:

klein minigraafwerktuig,

Compact Mini Excavator,

Bouw minigraver
