HT18C 1.8-ton Mini Excavator for Confined Spaces

Name: HT18C 1.8-ton Mini Excavator for Confined Spaces
Brand: Shandong Hightop Group
SKU: HT18C
Availability: InStock

Plaats van herkomst	China
Merknaam	Hightop
Certificering	CE，EPA，ISO，TUV
Modelnummer	HT18C

Productdetails

Productnaam:

HT18C Minigraafmachine

Totale lengte/verzendlengte A:

4150/2350MM

Totale breedte B:

1100 mm

Bovenbreedte D:

960 mm

Betaling & het Verschepen Termijnen

Verpakking Details

Houten kratverpakking

Levertijd

5-8 werkdagen

Betalingscondities

L/C, D/A, D/P, T/T, Western Union

Levering vermogen

100 sets per maand

Productomschrijving

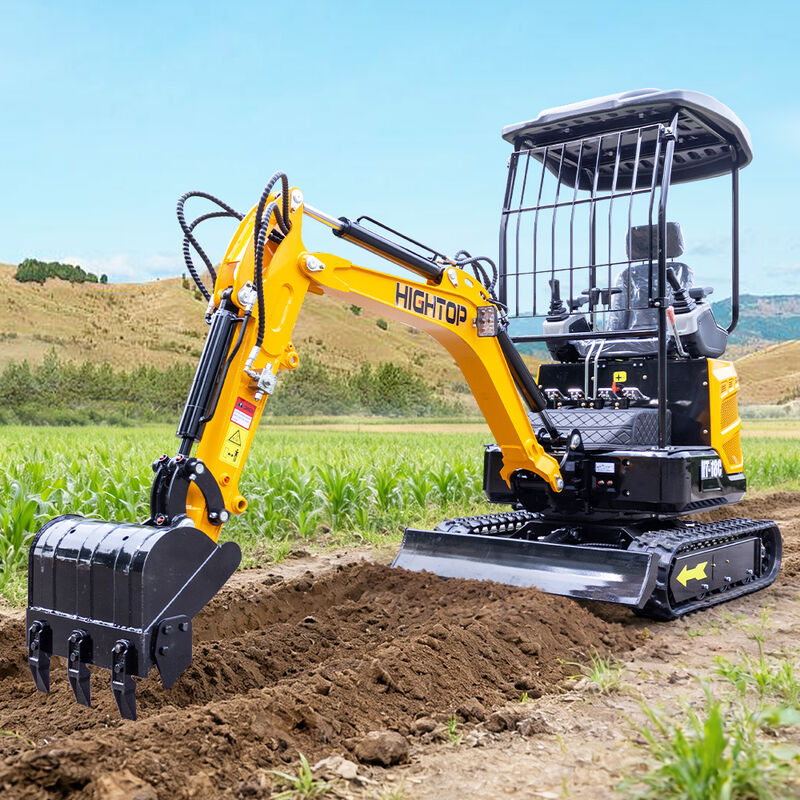

HT18C Mini Excavator

The HT18C mini excavator is a 1.8-tonne class zero-tail swing micro-excavator. With its compact and agile design and swing-out boom, it is ideal for working in confined spaces. Equipped with a high-performance engine, it offers responsive hydraulic control, excellent fuel efficiency and durability, and is widely used in landscaping, agricultural land improvement, municipal works and indoor demolition.

Technical Specifications

Specification	Value
Overall length/Shipping length A	4150/2350 MM
Total width B	1100 MM
Upper width D	960 MM
Overall height (to the top of the cab) C	2280 MM
Standard track pad width F	180 MM
Track gauge G	920 MM
Minimum ground clearance H	119 MM
Turning radius at the rear I	760 MM
Track contact length J	1150 MM
Track length K	1400 MM

Technical Parameter	Value
Quality of work	1000 KG
Bucket capacity	0.02 m³
Rated power	17 KW
Rotational speed	12 RPM
Hill-climbing ability	30°

Scope of Work

Parameter	Value
Maximum digging height a	2490 MM
Maximum unloading height b	1635 MM
Maximum digging depth c	1950 MM
Maximum digging distance d	2880 MM
Minimum turning radius e	1580 MM
Maximum height at minimum turning radius f	1620 MM
